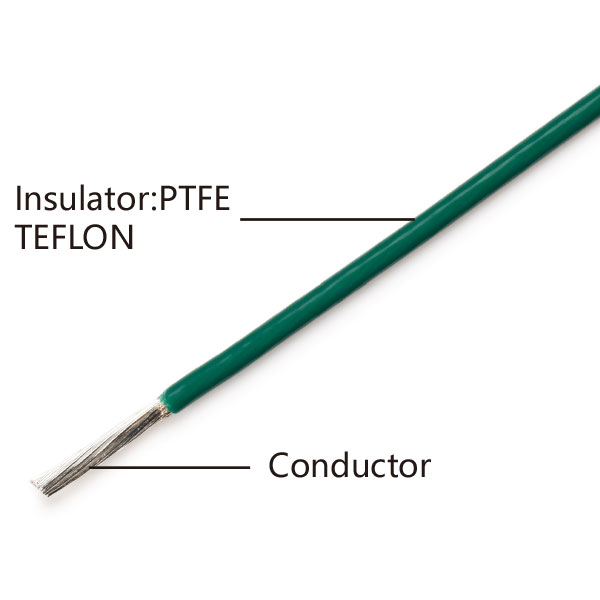

Teflon PTFE wire AFT250

Oil equipment, electric machinery, automotive cables, outdoor lighting, PTC thermistors, electronic components etc.

Conductor			Insulation		Electrical Properties	Packing
Sectional Area mm²	Conductor Construction NO.XΦmm	Diameter mm	Insulation Thickness mm	Outer Diameter mm	Max.Conductor Resistance DC 20'C Ω/km	M/coil
0.05	1ｘ0.25	0.25	0.20	0.65	376.2	500
0.07	1ｘ0.30	0.30	0.20	0.70	245.0	500
0.12	1ｘ0.40	0.40	0.225	0.85	144.1	500
0.16	1ｘ0.45	0.45	0.25	0.95	126.0	500
0.20	1ｘ0.50	0.50	0.30	1.10	83.5	500
0.08	7ｘ0.12	0.36	0.25	0.86	227.0	500
0.15	7ｘ0.16	0.48	0.25	0.98	126.0	500
0.20	7ｘ0.20	0.60	0.25	1.10	83.5	500
0.35	19ｘ0.16	0.80	0.30	1.40	49.5	200
0.50	19ｘ0.18	0.90	0.35	1.60	36.7	200
0.75	19ｘ0.23	1.15	0.35	1.85	22.7	200
1.0	19ｘ0.26	1.30	0.35	2.00	19.0	200
1.2	19ｘ0.28	1.40	0.40	2.20	15.3	200
1.5	19ｘ0.32	1.60	0.40	2.40	11.7	200
2.0	19ｘ0.37	1.85	0.45	2.75	9.45	100
2.5	19ｘ0.41	2.05	0.55	3.15	6.86	100
4.0	37ｘ0.37	2.58	0.50	3.58	4.51	100
