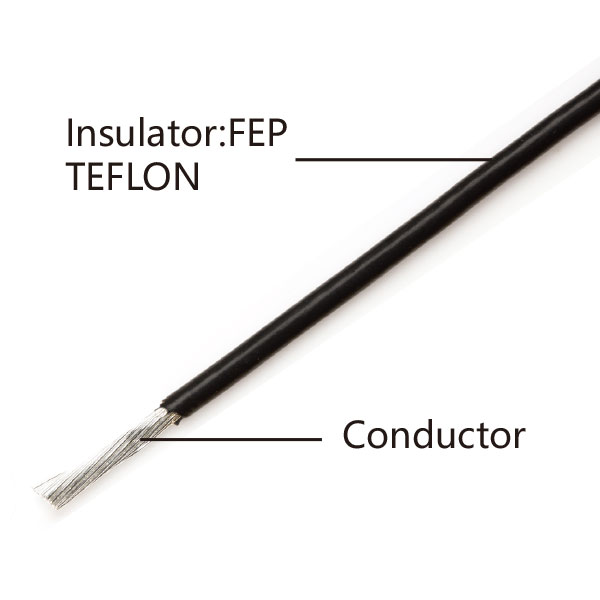

Teflon FEP wire UL1330 UL1331
Applications:
home appliances, lighting lamps(cold lightsource), small motors, temperature sensors, electromagnetic coils, automotive interior cables, electronic appliances etc.
Technical Data:
- Insulation: FEP
- Conductor: Tinned Copper
- Temperature: -80'C~﹢200'C
- Voltage: 600V
- Color: Red-White-Black-Yellow-Green-Blue-Brown-Orange-Purple-Gray-Transpanrent-Yellow/Green-Customized
UL1330 UL1331
| Conductor | Insulation | Electrical Properties | Packing | |||
|---|---|---|---|---|---|---|
| AWG | Conductor Construction NO.XΦmm |
Diameter mm |
Insulation Thickness mm |
Outer Diameter mm |
Max.Conductor Resistance DC 20'C Ω/km |
M/coil |
| 10 | 37ｘ0.43 | 3.01 | 0.51 | 4.03 | 3.546 | 305 |
| 12 | 19ｘ0.49 | 2.45 | 0.51 | 3.47 | 5.64 | 305 |
| 14 | 19ｘ0.37 | 1.85 | 0.51 | 2.87 | 8.96 | 305 |
| 16 | 19ｘ0.30 | 1.50 | 0.51 | 2.52 | 14.6 | 305 |
| 17 | 19ｘ0.26 | 1.30 | 0.51 | 2.32 | 18.3 | 305 |
| 18 | 19ｘ0.23 | 1.15 | 0.51 | 2.17 | 23.2 | 305 |
| 20 | 19ｘ0.18 | 0.90 | 0.51 | 1.92 | 36.7 | 305 |
| 1ｘ0.80 | 0.80 | 0.51 | 1.82 | 35.2 | 305 | |
| 22 | 19ｘ0.16 | 0.80 | 0.51 | 1.82 | 59.4 | 610 |
| 1ｘ0.65 | 0.65 | 0.51 | 1.67 | 56.4 | 610 | |
| 24 | 7ｘ0.20 | 0.60 | 0.51 | 1.62 | 94.2 | 610 |
| 1ｘ0.50 | 0.50 | 0.51 | 1.52 | 89.3 | 610 | |
| 26 | 7ｘ0.16 | 0.48 | 0.51 | 1.50 | 150.0 | 610 |
| 1ｘ0.40 | 0.40 | 0.51 | 1.42 | 143.0 | 610 | |
| 28 | 7ｘ0.12 | 0.36 | 0.51 | 1.38 | 239.0 | 610 |
| 1ｘ0.32 | 0.32 | 0.51 | 1.34 | 227.0 | 610 | |
| 30 | 7ｘ0.10 | 03.0 | 0.51 | 1.32 | 381.0 | 610 |
| 1ｘ0.254 | 0.254 | 0.51 | 1.274 | 361.0 | 610 | |
