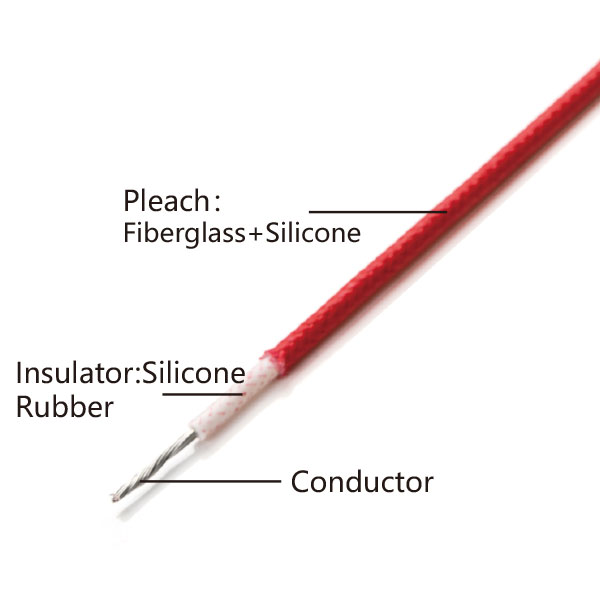

Silicone fiberglass wire UL3122

Heating source for lighting, electric machinery, air conditioning, oven, drying path, and household appliances etc.

Conductor			Insulation			Electrical Properties	Packing
Sectional Area mm²	Conductor Construction NO.XΦmm	Diameter mm	Insulation Thickness mm	Pleach Thickness mm	Outer Diameter mm	Max.Conductor Resistance DC 20'C Ω/km	M/coil
16	7ｘ0.50	1.5	0.39	0.15	2.58	14.6	305
17	32ｘ0.20	1.34	0.39	0.15	2.42	18.3	305
18	7ｘ0.40	1.20	0.39	0.15	2.28	23.2	305
20	7ｘ0.32	0.96	0.39	0.15	2.04	36.7	305
22	7ｘ0.26	0.78	0.39	0.15	1.86	59.4	610
24	7ｘ0.20	0.60	0.39	0.15	1.68	94.2	610
26	7ｘ0.16	0.48	0.39	0.15	1.56	150	610
