Silicone fiberglass wire UL3071 UL3074 UL3075
Applications:
Heating source for lighting, electric machinery, air conditioning, oven, drying path, and household appliances etc.

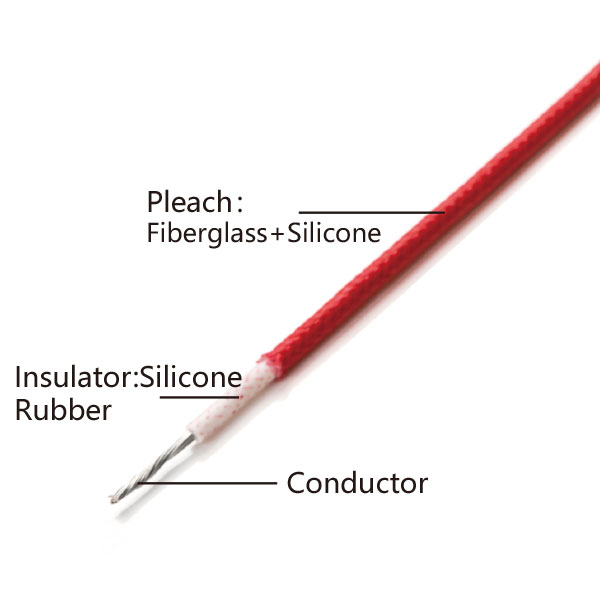

Technical Data:
- Pleach: Fiberglass+Silicone Resin
- Insulation: Silicone rubber
- Conductor: Tinned copper
- Temperature: -60'C~﹢200'C
- Voltage: 600V
- Color: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
UL3071 UL3074 UL3075
| Type | Conductor | Insulation | Electrical Properties | Packing | ||||
|---|---|---|---|---|---|---|---|---|
| Sectional Area mm² |
Conductor Construction NO.XΦmm |
Diameter mm |
Insulation Thickness mm |
Pleach Thickness mm |
Outer Diameter mm |
Max.Conductor Resistance DC 20'C Ω/km |
M/coil | |
| UL3071 | 14 | 40ｘ0.26 | 1.90 | 0.78 | 0.15 | 3.76 | 8.96 | 305 |
| 16 | 7ｘ0.50 | 1.50 | 0.78 | 0.15 | 3.36 | 14.6 | 305 | |
| 17 | 32ｘ0.20 | 1.34 | 0.78 | 0.15 | 3.20 | 18.3 | 305 | |
| 18 | 7ｘ0.40 | 1.20 | 0.78 | 0.15 | 3.06 | 23.2 | 305 | |
| UL3074 | 12 | 49ｘ0.30 | 2.70 | 0.78 | 0.15 | 4.56 | 5.64 | 305 |
| UL3075 | 10 | 77ｘ0.30 | 3.70 | 1.15 | 0.15 | 6.30 | 3.546 | 305 |
