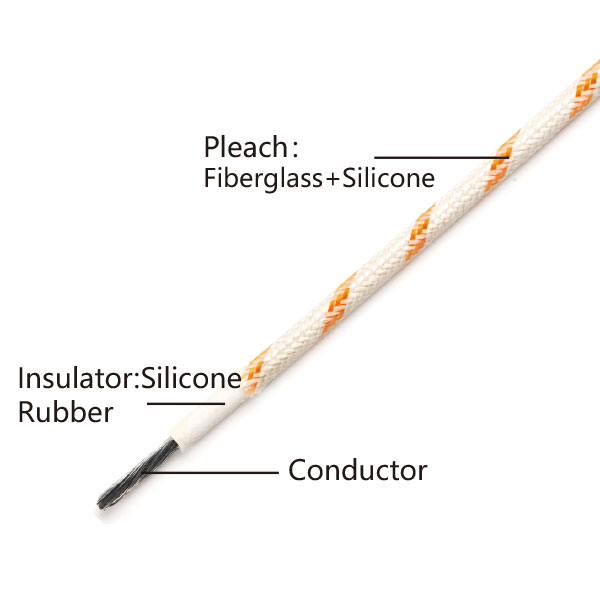

Silicone fiberglass wire AGRP

Heating source for lighting, electric machinery, air conditioning, oven, drying path, and household appliances etc.

Conductor			Insulation			Electrical Properties	Packing
Sectional Area mm²	Conductor Construction NO.XΦmm	Diameter mm	Insulation Thickness mm	Pleach Thickness mm	Outer Diameter mm	Max.Conductor Resistance DC 20'C Ω/km	M/coil
0.2	12ｘ0.15	0.60	0.50	0.15	1.80	95	200
0.3	16ｘ0.15	0.70	0.50	0.15	2.00	71.2	200
0.4	23ｘ0.15	0.85	0.50	0.15	2.20	49.6	200
0.5	28ｘ0.15	0.90	0.50	0.15	2.20	40.1	200
0.75	42ｘ0.15	1.15	0.50	0.15	2.50	26.7	200
1.0	32ｘ0.20	1.30	0.50	0.15	2.70	20.0	200
1.2	40ｘ0.20	1.50	0.50	0.15	2.80	15.9	200
1.5	48ｘ0.20	1.60	0.55	0.15	3.00	13.7	100
2.0	40ｘ0.25	1.85	0.60	0.15	3.40	9.90	100
2.5	49ｘ0.25	2.10	0.65	0.15	3.70	8.21	100
3.0	43ｘ0.30	2.40	0.65	0.15	4.00	6.63	100
3.5	50ｘ0.30	2.70	0.65	0.15	4.30	5.64	100
4.0	56ｘ0.30	2.80	0.60	0.20	4.40	5.09	100
5.5	77ｘ0.30	3.40	0.70	0.20	5.40	3.55	100
6.0	84ｘ0.30	3.60	0.70	0.20	5.20	3.39	100
8.0	63ｘ0.40	4.20	0.80	0.20	6.40	2.55	100
