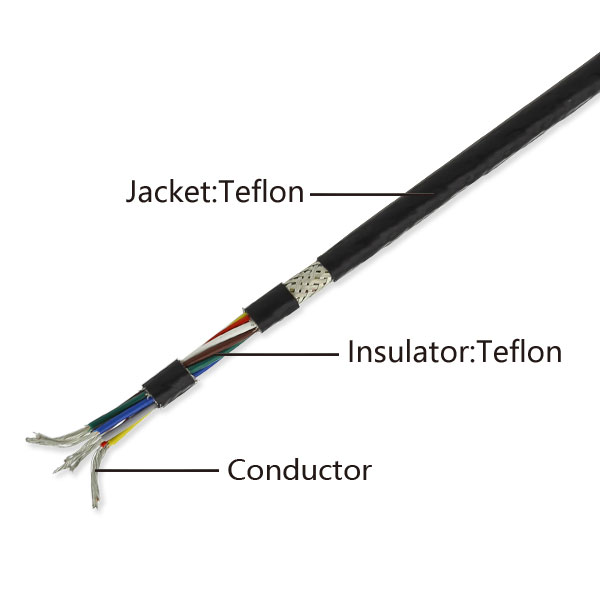

High temperature teflon cable SKFF

Applications:

This product is suitable for AC rated voltage 0.6/1KV and below fixed laying transmission and distribution lines, power transmission or motor lead wire high temperature, corrosion, acid and corrosive gases, water and other characteristics, high temperature stability of electrical performance, carrying capacity, long life, are widely used in metallurgy, electric power, petrochemical, large building, automobile manufacturing and other insustries.

Technical Data:

AC rated voltage: ACU0/U0.6/1KV
Maximum operating temperature: poly FEP(F46) insulation does not exceed 200'C
Minimum ambient temperature: fluorine plastic insulation and sheath Fixed laying -40'C, non-fixed laying -15'C
Laying of cable installation temperature should not be less than 0'C
Cable bending radius: single-core cable minimum 15 times the cable diameter,Multi-core cable minimum 10 times the cable diameter

Fluorine plastic high temperature power cables

Basic Model and name
Type	Product Name	Normal temperature'C
FF46	Fluoride plastic insulated and sheathed power cable	-60-200
FF46P	Fluoride plastic insulated and sheathed copper braid shidlded power cable	-60-200
ZR-F46(FV)	Fluoride plastic insulated and PVC sheathed flame retardant power cable	-60-260
ZR-FF4P	PFA insulated and sheathed steel armored power eable(imported raw materials)	-60-260
YGC-F46(FG)	Fluorine plastic insulation silicon rubber sheath power cable	-60-180
YVF-F46	Fluoride plastic insulation PVC sheathed flame retardant power cable nitrile	-60-105

Code names and meanings
Code	The meaning of code
A series of codes	Ignore
F(F46)	FEP（F46）
YVF	Nitrile Butadiene Rubber
G	Silicone rubber
ZR(V)	Flame retardant PVC（Three kinds of 70'C、90'C、105'C ）
P	Copper braid
R	Stranded conductor
The main technical indicators
Finished cable conductor DC resistance (in accordance with the provisions of GB3956)
20'Cwhen the insulation resistance of not less than 500MΩ/KM, 180'Cwhen the insulation resistance of not less than10MΩ/KM
Finished cable communication 50HZ3.5KV/5min withstand voltage test without breakdown
