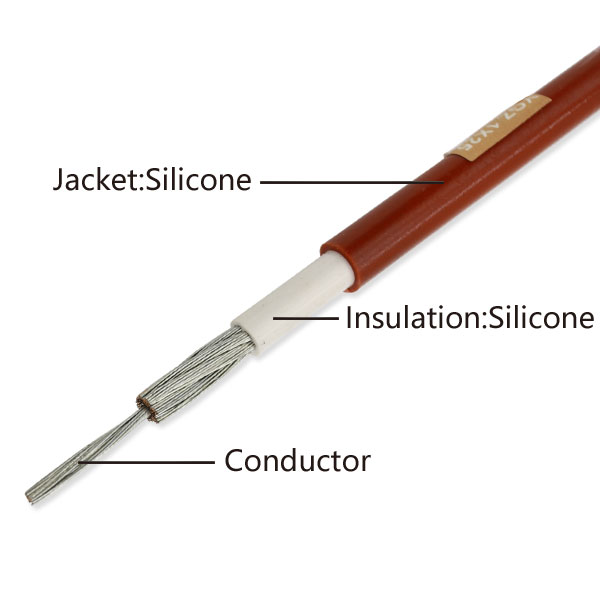

High temperature silicone cable YGZ YGC
Applications:
This product is suitable for AC rated voltage 0.6/1KV and below fixed laying or mobile electric power transmission line with a connecting cable, the product has a heat radiation, cold, acid and corrosive gases, water and other characteristics, the cable structure, soft, easy to radiation, high temperature(cold) environment stable electrical performance, outstanding aging resistance, long service life, widely used in metallurg, electric power, petrochemical, electronics, automotive andother industries.
Technical Data:
- AC rated voltage: AC U0/U 0.6/1KV
- Maximum operating temperature:180'C
- Minimun ambient temperature: Fixed laying -60'C
- Laying of cable installation temperature should be not lower than -25'C
- Cable bending radius:cable a minimum of 10 times the cable diameter
Silicone High Temperature Power Cable
| Basic Model and name | |
|---|---|
| Type | Product Name |
| YGC | Silicone rubber silicone rubber insulated power cable sheath |
| YGCR | Silicone rubber silicone rubber insulated flexible cable sheath movement with power |
| YGCP | Silicone rubber silicone rubber insulated powr cable sheating copper braid |
| YGC22 | Silicone rubber silicone rubber insulate cable sheath installation |
| JGG | Silicone rubber insulated silicone rubber sheath soft wire installation mobile use |
| JGGR | Silicone rubber insulated silicone rubber sheath soft wire installation mobile use |
| JGGP | Silicone rubber silicone rubber insulate copper braided shield installed cable sheath |
| JHXG | Silicone rubber insulated motor lead wire |
| Note:The flame retardant silicone rubber cable type front ZR,conductor wire core wire can be used in the tin. | |
| Code names and meanings | |
|---|---|
| Code | Meanings of codes |
| Y | Series Code(mobile soft cable) |
| G | Silicone rubber |
| C | Heavy |
| 22 | Steel tape armored |
| P | Copper braid |
| R | Stranded conductor |
| J | Motor lead wire |
| Note:The flame retardant silicone rubber cable type front ZR,conductor wire core wire can be used in the tin. | |
| Core No.ｘsection mm² |
Structure | Wire diameter | Max.Conductor Resistance DC 20'C Ω/km |
||
|---|---|---|---|---|---|
| Nominal | Tolcrance | ||||
| mm² | No./D(mm) | mm | mm | Copper core | Tinned copper |
| 2×0.5 | 16/0.20 | 5.9 | ±0.20 | 39.0 | 40.1 |
| 3×0.5 | 16/0.20 | 6.2 | ±0.20 | 39.0 | 40.1 |
| 4×0.5 | 16/0.20 | 6.8 | ±0.30 | 39.0 | 40.1 |
| 5×0.5 | 16/0.20 | 7.4 | ±0.30 | 39.0 | 40.1 |
| 6×0.5 | 16/0.20 | 7.6 | ±0.30 | 39.0 | 40.1 |
| 7×0.5 | 16/0.20 | 8.1 | ±0.20 | 39.0 | 40.1 |
| 2×0.75 | 24/0.20 | 6.3 | ±0.25 | 26.0 | 26.7 |
| 3×0.75 | 24/0.20 | 6.7 | ±0.30 | 26.0 | 26.7 |
| 4×0.75 | 24/0.20 | 7.7 | ±0.30 | 26.0 | 26.7 |
| 5×0.75 | 24/0.20 | 8.4 | ±0.30 | 26.0 | 26.7 |
| 6×0.75 | 24/0.20 | 8.6 | ±0.30 | 26.0 | 26.7 |
| 7×0.75 | 24/0.20 | 9.1 | ±0.30 | 26.0 | 26.7 |
| 10×0.75 | 24/0.20 | 11.8 | ±0.30 | 26.0 | 26.7 |
| 12×0.75 | 24/0.20 | 12.5 | ±0.30 | 26.0 | 26.7 |
| 19×0.75 | 24/0.20 | 14.8 | ±0.40 | 26.0 | 26.7 |
| 2×1.0 | 32/0.20 | 7.1 | ±0.25 | 19.5 | 20.0 |
| 3×1.0 | 32/0.20 | 7.5 | ±0.30 | 19.5 | 20.0 |
| 4×1.0 | 32/0.20 | 8.2 | ±0.30 | 19.5 | 20.0 |
| 5×1.0 | 32/0.20 | 8.9 | ±0.30 | 19.5 | 20.0 |
| 6×1.0 | 32/0.20 | 9.2 | ±0.30 | 19.5 | 20.0 |
| 7×1.0 | 32/0.20 | 9.7 | ±0.30 | 19.5 | 20.0 |
| 10×1.0 | 32/0.20 | 12.6 | ±0.30 | 19.5 | 20.0 |
| 12×1.0 | 32/0.20 | 13.5 | ±0.30 | 19.5 | 20.0 |
| 19×1.0 | 32/0.20 | 15.8 | ±0.40 | 19.5 | 20.0 |
| 2×1.5 | 30/0.25 | 7.8 | ±0.30 | 13.3 | 13.7 |
| 3×1.5 | 30/0.25 | 8.3 | ±0.30 | 13.3 | 13.7 |
| 4×1.5 | 30/0.25 | 9.0 | ±0.30 | 13.3 | 13.7 |
| 5×1.5 | 30/0.25 | 10 | ±0.30 | 13.3 | 13.7 |
| 6×1.5 | 30/0.25 | 10.4 | ±0.30 | 13.3 | 13.7 |
| 7×1.5 | 30/0.25 | 10.9 | ±0.30 | 13.3 | 13.7 |
| 10×1.5 | 30/0.25 | 14 | ±0.30 | 13.3 | 13.7 |
| 12×1.5 | 30/0.25 | 14.9 | ±0.40 | 13.3 | 13.7 |
| 14×1.5 | 30/0.25 | 15.7 | ±0.40 | 13.3 | 13.7 |
| 16×1.5 | 30/0.25 | 16.6 | ±0.40 | 13.3 | 13.7 |
| 18×1.5 | 30/0.25 | 17.2 | ±0.40 | 13.3 | 13.7 |
| 19×1.5 | 30/0.25 | 17.7 | ±0.40 | 13.3 | 13.7 |
| 20×1.5 | 30/0.25 | 18.4 | ±0.40 | 13.3 | 13.7 |
| 24×1.5 | 30/0.25 | 21 | ±0.40 | 13.3 | 13.7 |
| 27×1.5 | 30/0.25 | 22 | ±0.50 | 13.3 | 13.7 |
| 37×1.5 | 30/0.25 | 25.2 | ±0.50 | 13.3 | 13.7 |
| 2×2.5 | 50/0.25 | 9.2 | ±0.30 | 7.98 | 8.21 |
| 3×2.5 | 50/0.25 | 9.8 | ±0.30 | 7.98 | 8.21 |
| 4×2.5 | 50/0.25 | 10.6 | ±0.30 | 7.98 | 8.21 |
| 5×2.5 | 50/0.25 | 11.6 | ±0.30 | 7.98 | 8.21 |
| 6×2.5 | 50/0.25 | 12 | ±0.30 | 7.98 | 8.21 |
| 7×2.5 | 50/0.25 | 12.6 | ±0.30 | 7.98 | 8.21 |
| 10×2.5 | 50/0.25 | 16.4 | ±0.40 | 7.98 | 8.21 |
| 12×2.5 | 50/0.25 | 17.4 | ±0.40 | 7.98 | 8.21 |
| 19×2.5 | 50/0.25 | 20.6 | ±0.40 | 7.98 | 8.21 |
| 24×2.5 | 50/0.25 | 25 | ±0.50 | 7.98 | 8.21 |
| 27×2.5 | 50/0.25 | 25.9 | ±0.50 | 7.98 | 8.21 |
| 37×2.5 | 50/0.25 | 28.2 | ±0.50 | 7.98 | 8.21 |
| Core No.ｘsection mm² |
Structure | Wire diameter | Max.Conductor Resistance DC 20'C Ω/km |
||
|---|---|---|---|---|---|
| Nominal | Tolcrance | ||||
| mm² | No./D(mm) | mm | mm | Copper core | Tinned copper |
| 2×4 | 56/0.30 | 11.2 | ±0.30 | 4.95 | 5.09 |
| 3×4 | 56/0.30 | 12.0 | ±0.30 | 4.95 | 5.09 |
| 4×4 | 56/0.30 | 13.5 | ±0.30 | 4.95 | 5.09 |
| 5×4 | 56/0.30 | 14.8 | ±0.40 | 4.95 | 5.09 |
| 6×4 | 56/0.30 | 15.7 | ±0.40 | 4.95 | 5.09 |
| 7×4 | 56/0.30 | 16.6 | ±0.40 | 4.95 | 5.09 |
| 12×4 | 56/0.30 | 22.4 | ±0.50 | 4.95 | 5.09 |
| 2×6 | 84/0.30 | 13.0 | ±0.30 | 3.30 | 3.39 |
| 3×6 | 84/0.30 | 13.7 | ±0.30 | 3.30 | 3.39 |
| 4×6 | 84/0.30 | 15.6 | ±0.40 | 3.30 | 3.39 |
| 5×6 | 84/0.30 | 17.0 | ±0.40 | 3.30 | 3.39 |
| 6×6 | 84/0.30 | 18.0 | ±0.40 | 3.30 | 3.39 |
| 7×6 | 84/0.30 | 18.8 | ±0.40 | 3.30 | 3.39 |
| 2×10 | 84/0.40 | 17.0 | ±0.40 | 1.91 | 1.95 |
| 3×10 | 84/0.40 | 18.4 | ±0.50 | 1.91 | 1.95 |
| 4×10 | 84/0.40 | 20.6 | ±0.50 | 1.91 | 1.95 |
| 5×10 | 84/0.40 | 22.8 | ±0.50 | 1.91 | 1.95 |
| 2×16 | 126/0.40 | 22.6 | ±0.50 | 1.21 | 1.24 |
| 3×16 | 126/0.40 | 22.4 | ±0.50 | 1.21 | 1.24 |
| 4×16 | 126/0.40 | 25.0 | ±0.50 | 1.21 | 1.24 |
| 5×16 | 126/0.40 | 27.6 | ±0.50 | 1.21 | 1.24 |
| 2×25 | 196/0.40 | 25.0 | ±0.50 | 0.78 | 0.795 |
| 3×25 | 196/0.40 | 27.0 | ±0.50 | 0.78 | 0.795 |
| 4×25 | 196/0.40 | 29.5 | ±0.50 | 0.78 | 0.795 |
| 5×25 | 196/0.40 | 32.8 | ±0.60 | 0.78 | 0.795 |
| 2×35 | 276/0.40 | 28.0 | ±0.50 | 0.554 | 0.565 |
| 3×35 | 276/0.40 | 30.0 | ±0.50 | 0.554 | 0.565 |
| 4×35 | 276/0.40 | 33.0 | ±0.60 | 0.554 | 0.565 |
| 3×50 | 396/0.40 | 36.0 | ±0.60 | 0.386 | 0.393 |
| 4×50 | 396/0.40 | 39.6 | ±0.60 | 0.386 | 0.393 |
| 3×70 | 360/0.50 | 40.0 | ±0.60 | 0.272 | 0.277 |
| 3×95 | 475/0.50 | 45.8 | ±0.80 | 0.206 | 0.210 |
| 3×120 | 608/0.50 | 50.6 | ±0.80 | 0.161 | 0.164 |
| 3×150 | 756/0.50 | 56.2 | ±0.80 | 0.129 | 0.132 |
| 3×185 | 925/0.50 | 61.8 | ±1.0 | 0.106 | 0.108 |
| 3×240 | 1221/0.50 | 69.4 | ±1.0 | 0.0801 | 0.082 |
| Core No.ｘsection mm² |
Structure | Wire diameter | ||
|---|---|---|---|---|
| Nominal | Tolcrance | |||
| mm² | No./D(mm) | mm | mm | |
| 3×1.5＋1×1.0 | 30/0.25 | 32/0.20 | 8.9 | ±0.30 |
| 3×2＋1×1.5 | 41/0.25 | 30/0.25 | 10.4 | ±0.30 |
| 3×2.5＋1×1.5 | 49/0.25 | 30/0.25 | 10.5 | ±0.30 |
| 3×4＋1×2.5 | 56/0.30 | 49/0.25 | 13.0 | ±0.30 |
| 3×6＋1×4 | 84/0.30 | 56/0.30 | 14.7 | ±0.40 |
| 3×10＋1×6 | 84/0.40 | 84/0.30 | 19.3 | ±0.50 |
| 3×16＋1×10 | 126/0.40 | 84/0.40 | 23.4 | ±0.50 |
| 3×25＋1×16 | 196/0.40 | 126/0.40 | 28.2 | ±0.50 |
| 3×35＋1×16 | 276/0.40 | 126/0.40 | 31.6 | ±0.50 |
| 3×35＋1×25 | 276/0.40 | 196/0.40 | 32.2 | ±0.60 |
| 3×50＋1×25 | 396/0.40 | 196/0.40 | 37.8 | ±0.60 |
| 3×50＋1×35 | 396/0.40 | 276/0.40 | 38.4 | ±0.60 |
| 3×70＋1×35 | 360/0.50 | 276/0.40 | 42.2 | ±0.60 |
| 3×70＋1×50 | 360/0.50 | 396/0.40 | 43.0 | ±0.60 |
| 3×95＋1×50 | 475/0.50 | 396/0.40 | 48.3 | ±0.60 |
| 3×120＋1×70 | 608/0.50 | 360/0.50 | 53.5 | ±0.80 |
| 3×150＋1×70 | 756/0.50 | 360/0.50 | 58.3 | ±0.80 |
| 3×150＋1×95 | 756/0.50 | 475/0.50 | 60.0 | ±1.0 |
| 3×185＋1×70 | 925/0.50 | 360/0.50 | 64.2 | ±1.0 |
| 3×185＋1×95 | 925/0.50 | 475/0.50 | 65.8 | ±1.0 |
| 3×240＋1×95 | 1221/0.50 | 475/0.50 | 72.8 | ±1.0 |
| 3×240＋1×120 | 1221/0.50 | 608/0.50 | 75.0 | ±1.2 |
