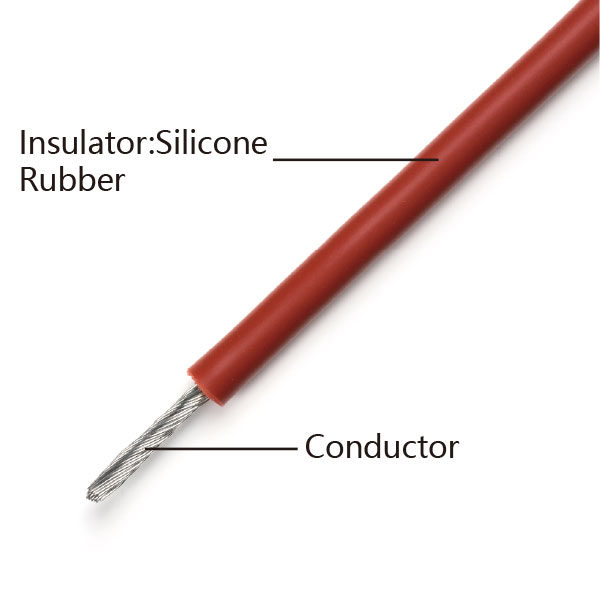

Silicone wire UL3529

electric machineries, electronic ceramics, heating parts, car lights, lighting, ballast etc.

Conductor			Insulation		Electrical Properties	Packing
AWG	Conductor Construction NO.XΦmm	Diameter mm	Insulation Thickness mm	Outer Diameter mm	Max.Conductor Resistance DC 20'C Ω/km	M/coil
12	49ｘ0.30	2.7	0.78	4.26	5.64	305
14	40ｘ0.26	1.90	0.78	3.46	8.96	305
16	7ｘ0.50	1.50	0.78	3.06	14.6	305
17	32ｘ0.20	1.34	0.78	2.90	18.3	305
18	7ｘ0.40	1.20	0.78	2.76	23.2	305
20	7ｘ0.32	0.96	0.78	2.52	36.7	305
22	7ｘ0.26	0.78	0.78	2.34	59.4	610
24	7ｘ0.20	0.60	0.78	2.16	94.2	610
26	7ｘ0.16	0.48	0.78	2.04	150	610
