Silicone wire JG
Applications:
High-voltage cabinet, power systems, High-voltage electric machineries, television receivers, transforms etc.
Technical Data:

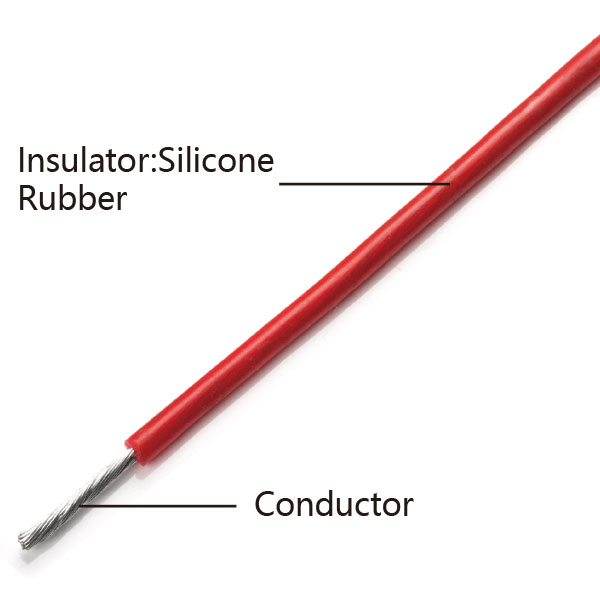

- Insulation: Silicone rubber
- Conductor: Copper or Tinned copper
- Temperature: -60'C~﹢200'C
- Voltage: AC500V、AC1000V
- Color: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
JG
| Conductor | Insulation Thickness mm | Outer Diameter mm | Electrical Properties | ||||
|---|---|---|---|---|---|---|---|
| Sectional Area mm² |
Conductor Construction NO.XΦmm |
Diameter mm |
500V | 1000V | 500V | 1000V | Max.Conductor Resistance DC 20'C Ω/km |
| 0.5 | 28/0.15 | 0.90 | 1.0 | 1.2 | 2.9 | 3.3 | 40.1 |
| 0.75 | 24/0.20 | 1.15 | 1.0 | 1.2 | 3.2 | 3.6 | 26.7 |
| 1.0 | 32/0.20 | 1.30 | 1.0 | 1.2 | 3.3 | 3.7 | 20 |
| 1.5 | 30/0.25 | 1.60 | 1.0 | 1.2 | 3.6 | 4.0 | 13.7 |
| 2.0 | 40/0.25 | 1.85 | 1.0 | 1.2 | 3.9 | 4.3 | 9.9 |
| 2.5 | 49/0.25 | 2.00 | 1.0 | 1.2 | 4.0 | 4.4 | 8.21 |
| 4.0 | 56/0.30 | 2.80 | 1.2 | 1.4 | 5.2 | 5.6 | 5.09 |
| 6.0 | 84/0.40 | 3.60 | 1.2 | 1.5 | 6.0 | 6.6 | 3.39 |
| 10.0 | 126/0.40 | 4.60 | 1.4 | 1.6 | 7.4 | 7.8 | 1.95 |
| 16.0 | 196/0.40 | 5.80 | 1.4 | 1.6 | 8.6 | 9.0 | 1.24 |
| 25.0 | 210/0.39 | 7.60 | 1.6 | 1.8 | 10.8 | 11.2 | 0.795 |
| 35.0 | 287/0.39 | 8.80 | 1.8 | 2.0 | 12.4 | 12.8 | 0.565 |
| 50.0 | 252/0.50 | 10.6 | 2.0 | 2.2 | 14.6 | 15.0 | 0.393 |
| 70.0 | 582/0.39 | 12.8 | 2.0 | 2.2 | 16.8 | 17.2 | 0.277 |
| 95.0 | 475/0.50 | 14.8 | 2.2 | 2.5 | 19.2 | 19.8 | 0.210 |
| 120.0 | 608/0.50 | 16.5 | 2.2 | 2.5 | 21.0 | 21.5 | 0.164 |
| 150.0 | 760/0.50 | 18.2 | 2.4 | 2.6 | 23.0 | 23.4 | 0.132 |
| 185.0 | 925/0.50 | 20.0 | 2.4 | 2.6 | 24.8 | 25.2 | 0.108 |
| 240.0 | 1221/0.50 | 23.0 | 2.6 | 2.8 | 28.2 | 28.6 | 0.0817 |
