Fire resistant mica cable GN500-02
Applications:
Electric heating, petrochemical, electrical and mechanical equipment, power plant, drying path, drying room, heating source for lighting, electric appliances etc.
Technical Data:

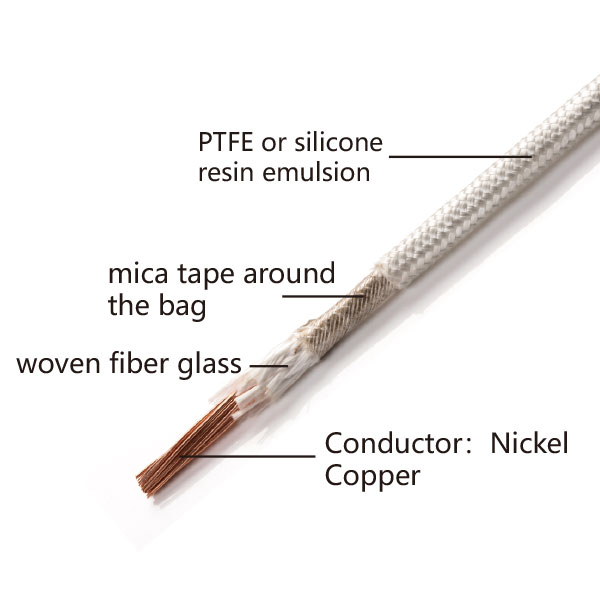

- Insulation: Fiberglass+Mica tape+Fiberglass+PTFE or silicone resin emulsion
- Conductor: Nickel copper
- Temperature: -60'C~﹢500'C
- Voltage: 500V
- Color: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
GN500-02
| Conductor | Outer Diameter mm |
Electrical Properties mm |
Packing | |
|---|---|---|---|---|
| Sectional Area mm² |
Jacket Thickness mm |
Max. Conductor Resistance DC 20'C Ω/km |
M/coil | |
| 0.50 | 7ｘ0.30 | 2.6±0.3 | 40.8 | 200 |
| 0.75 | 11ｘ0.30 | 2.7±0.3 | 24.3 | 200 |
| 1.0 | 14ｘ0.30 | 2.8±0.3 | 20.0 | 200 |
| 1.5 | 21ｘ0.30 | 3.0±0.3 | 12.6 | 100 |
| 2.0 | 28ｘ0.30 | 3.3±0.3 | 9.84 | 100 |
| 2.5 | 35ｘ0.30 | 3.6±0.5 | 7.37 | 100 |
| 4.0 | 56ｘ0.30 | 4.5±0.5 | 4.83 | 100 |
| 6.0 | 84ｘ0.30 | 5.5±0.5 | 3.26 | 100 |
| 10 | 140ｘ0.30 | 6.6±0.5 | 1.80 | 100 |
| 16 | 228ｘ0.30 | 7.8±0.5 | 1.31 | 100 |
| 25 | 361ｘ0.30 | 9.5±0.5 | 0.758 | 100 |
| 35 | 494ｘ0.30 | 11.2±1.0 | 0.548 | 100 |
| 50 | 703ｘ0.30 | 13.2±1.0 | 0.384 | 100 |
| 70 | 988ｘ0.30 | 15.4±1.0 | 0.289 | 100 |
| 95 | 960ｘ0.40 | 17.4±1.0 | 0.205 | 100 |
