Coaxial cable SFF
Applications:
Radio communications equipment and other similar high-frequency transmission technology using electronic devices

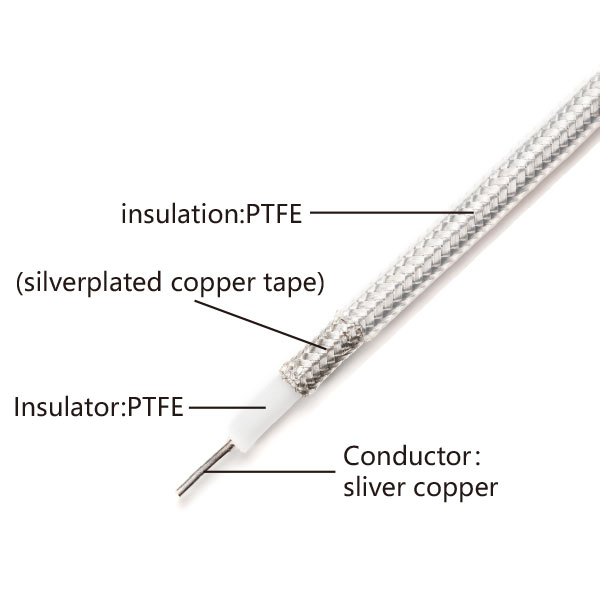

Technical Data:
- Jacket: FEP
- Shielded: silver plated copper
- Insulation: PTFE
- Conductor: silver copper
SFF
| Type | Conductor Construction NO.XΦmm |
Insulation Outer Diameter mm |
Shield | Outer Diameter mm |
Characteristics Impedance Ω |
Attenuation Constant <= d B/m |
Max. Voltage VMS |
||
|---|---|---|---|---|---|---|---|---|---|
| 30MHZ | 200MHZ | 300MHZ | |||||||
| SFF-50-1 | 7/0.10 | 0.87 | single | 1.8 | 50 | 0.33 | 0.85 | 3.4 | 1.2 |
| SFF-50-1.5-1 | 7/0.18 | 1.5 | single | 2.55 | 50 | 0.19 | 0.52 | 2 | 2 |
| SFF-50-1.5-2 | 7/0.18 | 1.5 | double | 3.2 | 50 | 0.19 | 0.52 | 2 | 2 |
| SFF-50-2-1 | 7/0.73 | 2.2 | single | 3.3 | 50 | 0.12 | 0.31 | 1.27 | 3 |
| SFF-50-2-2 | 7/0.73 | 2.2 | double | 4 | 50 | 0.12 | 0.31 | 1.27 | 3 |
| SFF-50-3-1 | 1/0.93 | 3 | single | 4.5 | 50 | 0.09 | 0.23 | 0.95 | 4.2 |
| SFF-50-3-2 | 1/0.93 | 3 | double | 5.5 | 50 | 0.09 | 0.23 | 0.95 | 4.2 |
| SFF-50-5-0 | 1/1.48 | 4.6 | single | 6.4 | 50 | 0.06 | 0.15 | 0.67 | 6.5 |
| SFF-75-1 | 7/0.17 | 0.87 | single | 1.8 | 75 | 0.28 | 0.74 | 2.9 | 1 |
| SFF-75-1.5-1 | 7/0.10 | 1.5 | single | 2.55 | 75 | 0.2 | 0.52 | 2 | 1.8 |
| SFF-75-1.5-2 | 1/0.10 | 1.5 | double | 3.2 | 75 | 0.2 | 0.52 | 2 | 1.8 |
| SFF-75-3-1 | 1/0.55 | 3 | single | 4.5 | 75 | 0.09 | 0.23 | 0.95 | 3.6 |
| SFF-75-3-2 | 7/0.55 | 3 | double | 5.5 | 75 | 0.09 | 0.23 | 0.95 | 3.6 |
| SFF-75-5 | 1/0.82 | 4.6 | single | 6.4 | 75 | 0.06 | 0.15 | 0.66 | 5.5 |
