Coaxial cable RG
Applications:
Radio communications equipment and other similar high-frequency transmission technology using electronic devices

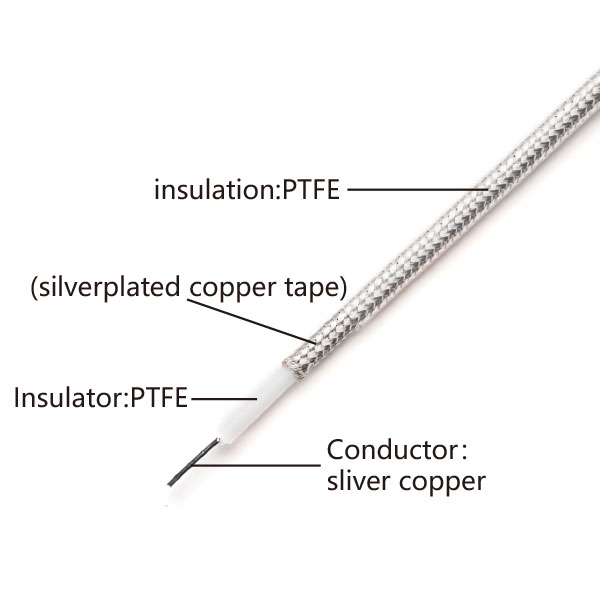

Technical Data:
- Jacket: FEP
- Shielded: silver plated copper
- Insulation: PTFE
- Conductor: silver copper
RG
| Type | Conductor Construction NO.XΦmm |
Insulation Outer Diameter mm |
Shield | Outer Diameter mm |
Characteristics Impedance Ω |
Attenuation Constant <= d B/m |
Max. Voltage VMS |
|---|---|---|---|---|---|---|---|
| RG178 | 7/0.10 | 0.86 | single | 1.83 | 50 | 2.572 | 1000 |
| RG178FEP | 7/0.10 | 0.86 | single | 1.83 | 50 | 2.572 | 1000 |
| RG316 | 7/0.17 | 1.52 | single | 2.5 | 50 | 1.532 | 1200 |
| RG316D | 7/0.17 | 1.52 | double | 2.9 | 50 | 1.532 | 1200 |
| RG393 | 7/0.80 | 7.24 | double | 9.91 | 50 | 1.089 | 5000 |
| RG142 | 1/0.94 | 2.95 | double | 4.95 | 50 | 1.05 | 1900 |
| RG141 | 1/0.94 | 2.95 | single | 4.83 | 50 | 1.05 | 1900 |
| RG304 | 1/0.50 | 4.7 | double | 7.11 | 50 | 0.755 | 3000 |
| RG179 | 7/0.10 | 1.6 | single | 2.54 | 75 | 0.869 | 1200 |
| RG179FEP | 7/0.10 | 1.6 | single | 2.54 | 75 | 0.875 | 1200 |
| RG302 | 1/0.64 | 3.71 | single | 5.13 | 75 | 0.666 | 2300 |
| RG303 | 1/0.94 | 2.95 | single | 4.32 | 70 | 0.781 | 1900 |
| RG180 | 7/0.10 | 2.59 | single | 3.56 | 95 | 0.676 | 1500 |
