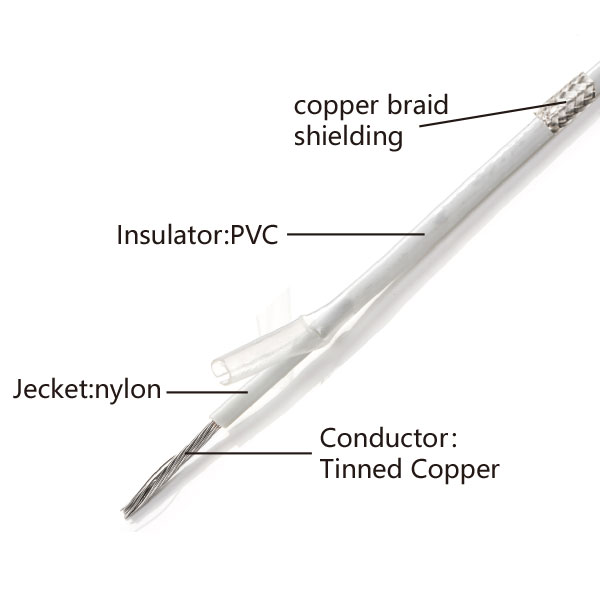

Nylon coated shielded wire FVNP

Plan low voltage wiring, high-speed road inductance wiring, lighting lamp, high pole lamp in the road and so on.

Conductor		Insulation			Packing
Sectional Area mm²	Conductor Construction NO.XΦmm	Insulation Thickness mm	Pleach Thickness mm	Outer Diameter mm	M/coil
0.2	12ｘ0.15	0.35	0.15	2.10	200
0.3	16ｘ0.15	0.35	0.15	2.20	200
0.4	23ｘ0.15	0.35	0.15	2.40	200
0.5	28ｘ0.15	0.35	0.15	2.50	200
0.6	19ｘ0.20	0.35	0.15	2.50	200
0.75	19ｘ0.23	0.35	0.15	2.65	200
1.0	19ｘ0.26	0.35	0.15	2.80	200
1.2	19ｘ0.28	0.40	0.15	3.00	100
1.5	19ｘ0.32	0.40	0.15	3.20	100
2.0	19ｘ0.37	0.40	0.15	3.45	100
2.5	49ｘ0.26	0.40	0.15	4.05	100
3.0	49ｘ0.28	0.45	0.15	4.20	100
4.0	77ｘ0.26	0.45	0.15	4.80	100
5.0	98ｘ0.26	0.45	0.18	5.20	100
6.0	77ｘ0.32	0.50	0.18	5.60	100
8.0	98ｘ0.32	0.50	0.18	6.10	100
10.0	126ｘ0.32	0.50	0.18	6.70	100
13.0	133ｘ0.36	0.60	0.22	7.60	100
16.0	209ｘ0.32	0.60	0.22	8.40	100
20.0	247ｘ0.32	0.60	0.22	9.00	100
25.0	209ｘ0.39	0.60	0.22	9.80	100
35.0	285ｘ0.39	0.60	0.22	11.0	100
