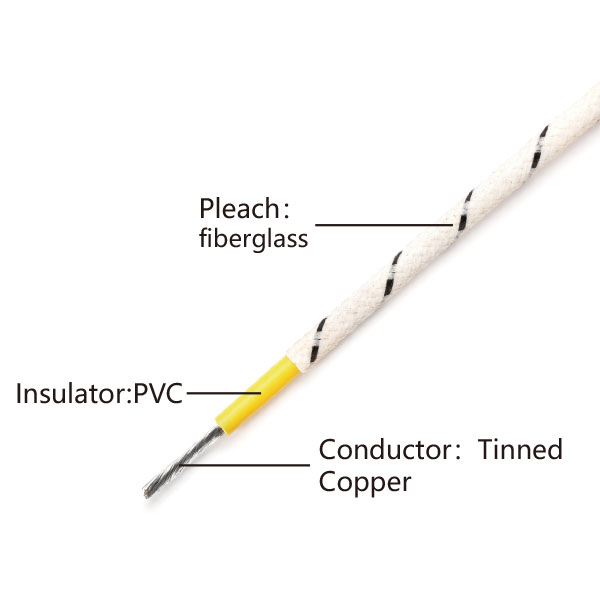

FVL PVC plane lacquer wire

Used plane low voltage wiring, high-speed road inductance wiring, lighting lamp, high pole lamp in the road and so on.

Conductor		Insulation			Packing
Sectional Area mm²	Conductor Construction NO.XΦmm	Insulation Thickness mm	Pleach Thickness mm	Outer Diameter mm	M/coil
0.35	7ｘ0.25	0.40	0.50	2.55	200
0.50	7ｘ0.30	0.40	0.50	2.70	200
0.75	7ｘ0.37	0.40	0.50	2.90	200
0.80	7ｘ0.40	0.40	0.50	3.00	200
1.0	19ｘ0.26	0.45	0.50	3.20	200
1.2	19ｘ0.28	0.45	0.50	3.20	200
1.5	19ｘ0.32	0.50	0.50	3.40	100
2.0	19ｘ0.37	0.50	0.50	3.90	100
2.5	19ｘ0.41	0.50	0.50	4.05	100
3.0	19ｘ0.45	0.50	0.50	4.25	100
4.0	49ｘ0.32	0.50	0.50	4.90	100
5.5	49ｘ0.36	0.50	0.50	5.24	100
6.0	49ｘ0.39	0.50	0.50	5.50	100
8.0	49ｘ0.45	0.60	0.50	6.25	100
10.0	49ｘ0.52	0.60	0.50	6.88	100
16.0	49ｘ0.64	0.60	0.50	7.96	100
25.0	98ｘ0.58	0.60	0.50	9.70	100
35.0	133ｘ0.58	0.60	0.50	10.90	100
